Writing CUDA kernels for interpolation

In this project, we use CUDA for a simple yet common problem like image interpolation and we get familiar with the functions running on the GPU, the kernel functions. Being interpolation very common in technical and scientific applications, the code permits having a tool that can be reused when needed.
We cover the following topics:

Nearest-neighbor interpolation;
Linear and bilinear interpolation;
CUDA texture memory;
Texture filtering;
Nearest-neighbor and linear interpolations of a PGM image;
Cubic B-spline interpolation;
Bicubic B-spline interpolation of a PGM image;
Texture lookup;
Catmull-Rom interpolation.

Different common interpolation techniques for PGM images are implemented with customized CUDA kernels, also using CUDA texture memory.

Technical requirements

The main prerequisites regard the fundamentals of C/C++ and CUDA programming and basic elements of calculus, especially function approximation. Concerning CUDA, a reference introductory book is [1] while a reference advanced book is [2]. The GitHub link for all the code files is: https://github.com/vitalitylearning2021/interpolationCUDA.

The interpolation problem

Interpolation [3] consists of approximately reconstructing the values of a function by properly combining its samples. The interpolation points are the points where the function needs to be reconstructed and are located within the region covered by the function samples, as in Figure 1. Thanks to interpolation, the properties of a function are “coded” within a certain number of properly chosen samples. The problem of reconstructing a function in the region outside that covered by the samples is called extrapolation. Extrapolation requires techniques completely different from those used for interpolation and is not dealt with here. Figure 1 below shows an example of the interpolation problem:

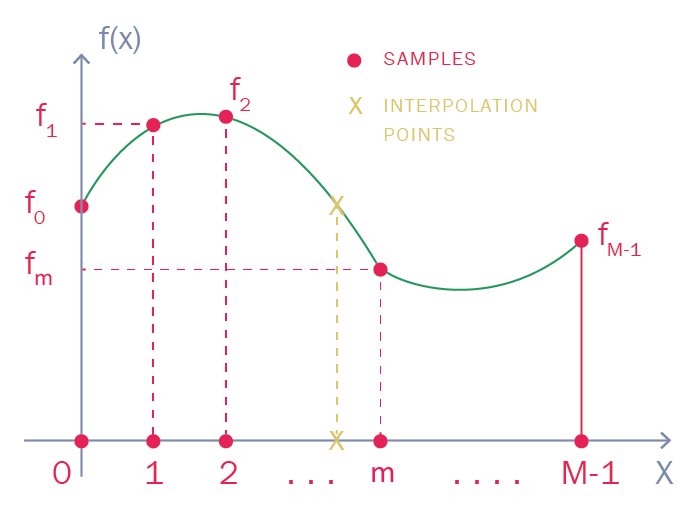

Figure 1. The interpolation problem.

The green curve represents a certain function $f(x)$ , the red dots are its samples $(f_0,f_1,\ldots,f_{M-1})$ used as data for interpolation and we want to reconstruct the function values at the yellow crosses (interpolation points) from the knowledge of its samples.
A very large number of interpolation techniques have been proposed, some using non-equispaced samples and some using equally spaced samples. We will here assume equally spaced samples and will consider the most common interpolation techniques.
The same techniques that we will illustrate below can be used for one-dimensional, two-dimensional, three-dimensional or multi-dimensional problems, depending on the application. In the present project, interpolation will be applied to image manipulation, hence a two-dimensional one.
To clarify the application significance, in the framework of image manipulation, interpolation serves different purposes. For example, one may just want to fill the image with intermediate samples besides the available ones, with a procedure known as increasing image resolution. This procedure is illustrated below in figure 2:

Figure 2. Applications of interpolation: increasing image resolution.

As it can be seen from figure 2, interpolation enables zooming parts of an image.
Alternatively, one may want to perform the so-called image inpainting, namely, recovering damaged samples. The image inpainting is displayed below in figure 3:

Figure 3. Applications of interpolation: image inpainting.

In other words, image inpainting enables reconstructing the image at the locations occupied by the “jetphotos.net” banner by exploiting the knowledge of the image at all the other surrounding locations.
Finally, one may wish to perform geometrical transformations to achieve, for example, the so-called image warping. Image warping is illustrated below in figure 4:

Figure 4. Applications of interpolation: image warping.

In this case, the image is required at grid points belonging to a lattice obtained as a distortion of a standard Cartesian sampling.
Henceforth, we will illustrate how exploiting a particular feature of GPUs, namely, texture memory, will enable performing, directly in hardware, basic interpolations as the nearest-neighbor (explained in the next section) and linear interpolation. Hardware interpolations are indeed very fast, although they have reduced accuracy.
We will also discuss how more complex interpolations, like cubic B-spline interpolation, may benefit from texture memory. At the end, suggestions on how extending the project in the form of (solved) exercises will be given.

Nearest-neighbor interpolation

Nearest-neighbor interpolation is the simplest possible form of interpolation and amounts to use the closest sample to interpolate a function at a certain interpolation point. Being the simplest interpolation, rather than calculating a combination of the samples, it simply approximates function values by the nearest-neighboring sample.
We will discuss nearest-neighbor interpolation with one-dimensional and two-dimensional interpolation.
One-dimensional interpolation consists of having samples of a function acquired on the real line and returning interpolated values on the real line, as shown below. One-dimensional interpolation is important per se because it frequently appears in applications and it is a preliminary step to learn two-dimensional interpolation. Figure 5 below illustrates one-dimensional interpolation:

Figure 5. Nearest-neighbor interpolation: one-dimensional case.

The horizontal yellow segments indicate that the interpolation function is assumed to be constant around the samples.
The two-dimensional case consists of producing a two-dimensional map of interpolated values. These values start from a two-dimensional map of function samples. Two-dimensional interpolation and, in particular, two-dimensional nearest-neighbor interpolation, is important as it is the case encountered in practice when dealing with image manipulation. Next, figure 6 shows two-dimensional nearest-neighbor interpolation:

Figure 6. Nearest-neighbor interpolation: two-dimensional case.

The colored boxes around the red dots indicate the constantness of the interpolation function. Although the typical applications for interpolation techniques are two-dimensional, as in the case of image processing, the one-dimensional case will serve for illustration purposes because it is simpler to be described. Furthermore, the two-dimensional case is an immediate extension of the one-dimensional one, yet not introducing any conceptual novelty.
Let’s address one-dimensional and two-dimensional cases for nearest-neighbor interpolation in the next two subsections.

Nearest-neighbor interpolation: one-dimensional case

Throughout this project and for one-dimensional problems, we will assume that the function $f(x)$ we want to interpolate is a real function of a real argument sampled at the points $x_m=m$ , $m=0,1,\ldots,M-1$ and that the corresponding function samples are $f_m=f(x_m)$ .
Henceforth, we assume that the function $f(x)$ is required in the interval $(0,M-1)$ and we indicate by $\lfloor x\rceil$ the nearest integer to the generic interpolation point $x$ . Accordingly, the nearest-neighbor interpolating function can be expressed as:

$f^{(0)}(x)=f_{\lfloor x\rceil}.$ [1]

Here, equation [1] simply says that, in order to obtain the nearest-neighbor interpolating function, we need to compute the nearest integer to $x$ , that is, $\lfloor x\rceil$ and then pick up the function sample with the corresponding index. In C/C++ and CUDA, the value of $\lfloor x\rceil$ can be computed by round(x).
Interpolation is typically a polynomial approximation of a function. The $^{(0)}$ superscript in $f^{(0)}(x)$ indicates that nearest-neighbor interpolation exploits a polynomial of degree $0$ .

Nearest-neighbor interpolation: two-dimensional case

Henceforth, for two-dimensional problems, we will assume that the function $f(x,y)$ we want to interpolate is a real function of two real variables sampled at the points of the two-dimensional Cartesian grid $(x_m,y_n)=(m,n)$ , with $m=0,1,\ldots,M-1$ and $n=0,1,\ldots,N-1$ . Analogously to the foregoing subsection, the interpolating function under the nearest-neighbor scheme is:

$f^{(0)}(x,y)=f_{\lfloor x\rceil,\lfloor y\rceil}.$ [2]

Now that we have revised the nearest-neighbor interpolation, let’s briefly review linear and bilinear interpolations in the next section.

Linear and bilinear interpolations

Let’s now consider a more accurate form of interpolation, namely, linear interpolation. While nearest-neighbor interpolation does not combine function samples and approximates the function with the nearest sample, linear interpolation is the simplest way to combine function samples to provide interpolation values. One-dimensional linear interpolation is illustrated in the image in figure 7:

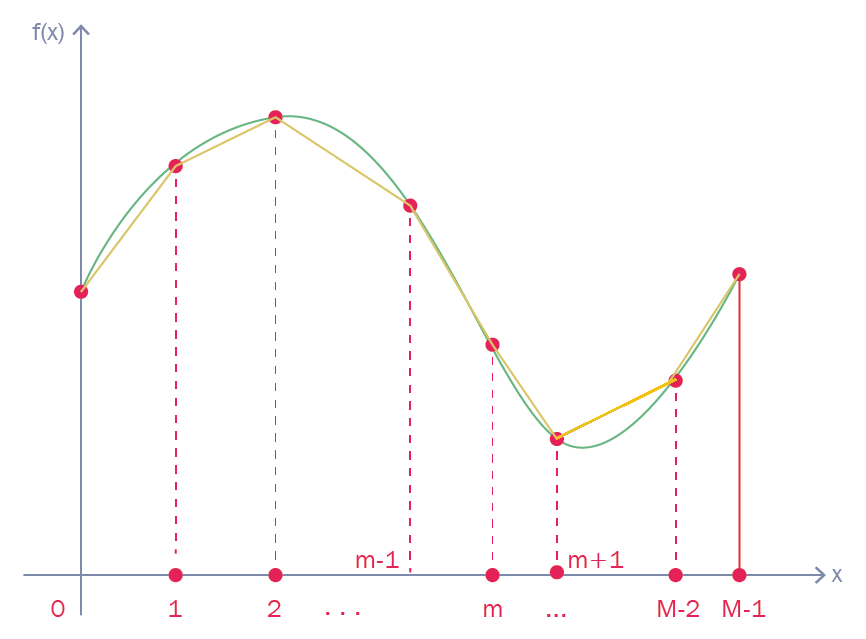

Figure 7. Linear interpolation: one-dimensional case.

The yellow segments connect the red samples and represent the broken line providing the linear approximation to $f(x)$ .
The two-dimensional case is illustrated in figure 8 below:

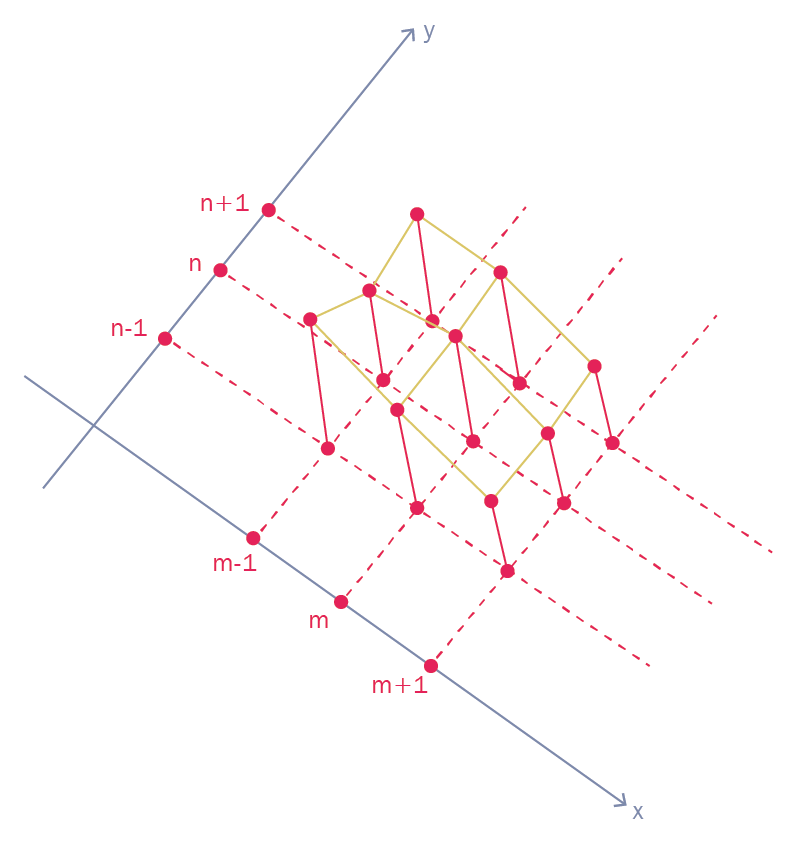

Figure 8. Linear interpolation: two-dimensional case.

As it can be seen, the interpolating function is now represented by facets having the samples as vertices.
The two-dimensional case is typically referred to as bilinear interpolation. Let’s review the one-dimensional and two-dimensional cases for linear interpolation in the next section.

Linear interpolation: one-dimensional case

In the one-dimensional case, when the interpolation point $x$ lies between the $m$ -th and the $m + 1$ -th samples, namely, $m\leq x\leq m + 1$ , linear interpolation consists of linearly approximating $f(x)$ using samples $f_m$ and $f_{m + 1}$ as

$f^{(1)}(x)=(1-\alpha) f_m + \alpha f_{m + 1},$ [3]

where $\alpha=x-m$ and $m$ coincides with the nearest integer not larger than $x$ . The superscript $^{(1)}$ in $f^{(1)}(x)$ indicates that linear interpolation exploits a polynomial of degree $1$ . It should be noticed that $m$ is different from ${\lfloor x\rceil}$ . While ${\lfloor x\rceil}$ is the nearest integer to $x$ , $m$ is the nearest integer not larger than $x$ , a quantity that in C/C++ and CUDA can be computed by floor(x).
From equation [3], it is seen that linear interpolation explicitly requires $2$ memory accesses to recover $f_m$ and $f_{m + 1}$ and a linear combination to compute $f^{(1)}(x)$ . Nevertheless, as it will be seen next, texture memory is specifically designed to perform those operations directly in hardware.

Linear interpolation: two-dimensional case

Linear interpolation in the two-dimensional case can be thought of as a combination of linear one-dimensional interpolations along the $x$ and $y$ axes. Figure 9 below illustrates the linear interpolation in the two-dimensional case:

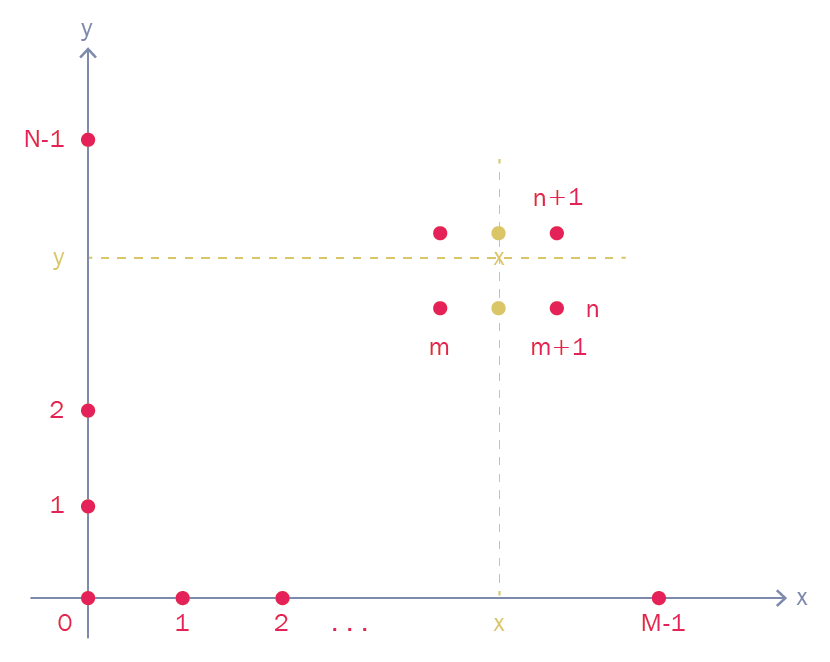

Figure 9. Illustrating the bilinear interpolation as a combination of one-dimensional ones.

The previous figure shows that two “virtual” samples are first reconstructed at the yellow dot locations from the four samples at the four red dot locations. Each of the two virtual samples is reconstructed by one-dimensional linear interpolations along the $x$ -axis. Then, the interpolation value at the yellow cross-location is determined from the two virtual samples by a one-dimensional linear interpolation along the $y$ -axis. More formally, the interpolating function at the interpolation point denoted with a cross in figure 9 and having coordinates $(x,y)$ is achieved from $4$ samples: $f_{m,n}$ , $f_{m + 1,n}$ , $f_{m,n + 1}$ and $f_{m + 1,n + 1}$ . The final result is achieved by first constructing the virtual sample represented by the upper empty circle in figure 9 and computed as a linear interpolation of $f_{m,n + 1}$ and $f_{m + 1,n + 1}$ along the $x$ axis, namely:

$f_{x,n + 1}=(1-\alpha_x)f_{m,n + 1} + \alpha_x f_{m + 1,n + 1},$ [4]

where $\alpha_x=x-m$ . Later on, the virtual sample $f_{x,n}$ corresponding to the lower empty circle in figure 9 is constructed and worked out as a linear interpolation of $f_{m,n}$ and $f_{m 1,n}$ along the $x$ axis, that is:

$f_{x,n}=(1-\alpha_x)f_{m,n} + \alpha_x f_{m + 1,n}.$ [5]

Finally, the desired value $f^{(1)}(x,y)$ is achieved as a linear interpolation of $f_{x,n}$ and $f_{x,n + 1}$ along the $y$ -axis, namely,

$f^{(1)}(x,y)=(1-\alpha_y)f_{x,n} + \alpha_y f_{x,n + 1},$ , [6]

where $\alpha_y=y-n$ .
The final bilinear interpolation formula can be obtained by substituting equations [4] and [5] in [6], but its expression is not really needed and is here omitted for the sake of brevity.
Let’s pause with theory and temporarily go towards practice, illustrating how the texture memory works in CUDA.

Towards practice: CUDA texture memory

Programmers with experience in graphics may already know texture memory since texture units are designed and typically employed for rendering pipelines in OpenGL and DirectX. Nevertheless, texture memory is also much useful for High-Performance Computing (HPC).
Programmers who are involved in non-graphics applications (like industrial and scientific HPC applications) use texture memory as a read-only cache. Such a memory is located on-chip, namely, on the same chip of the processing units (the GPU cores in our case), to decrease latency for frequently used data.
This can help improve memory access performance when global memory data reads have certain access patterns. Global memory is indeed located off-chip, namely, on a chip different from that of the processing units while texture caches are conceived having in mind applications where memory access shows much spatial locality.
To understand this point, figure 10 illustrates an example which refers to $4$ threads accessing neighboring pixels of a two-dimensional image:

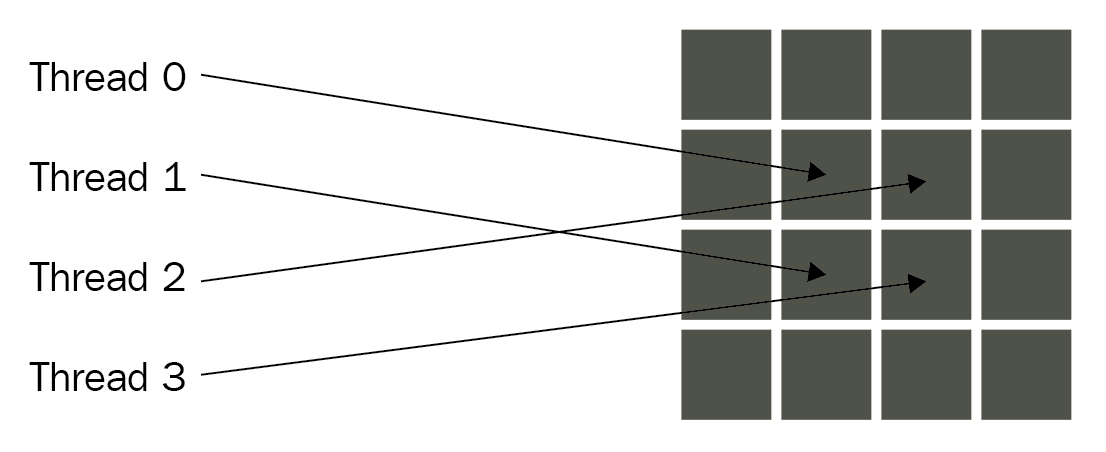

Figure 10. “Local” thread accesses to global memory.

Figure 10 illustrates how, in a typical CPU caching scheme, the $4$ accessed memory locations would not be stored at consecutive memory addresses so that they would not be cached together. On the other side, texture caches those global memory locations together to accelerate access patterns such as the illustrated one. This result is achieved by transferring the two-dimensional spatial locality through a mapping based on a z-curve-like concept [4].
We will overlook further details on z-curve-like caching, which is not of strict interest for the present project. Actually, in this project, we will not use texture memory to speed up memory fetches, but rather to perform fast interpolations, also known as texture filtering [5].
Indeed, when the texture is accessed using non-integer indices, it returns the interpolation between neighboring stored values. Such interpolation can be a nearest-neighbor or linear, namely, of the two types discussed above. Performing interpolation using texture memory has the indubitable advantage that such operation is performed by dedicated hardware circuitry, therefore it is worked out very fast.
Nonetheless, speed is paid with accuracy in the linear case since interpolation coefficients are stored in a fixed point format having $9$ -bit overall with $8$ bits of fractional value.
Figures 11 and 12 are not a mere repetition of Figures 5 and 7, but they illustrate how interpolation is achieved with texture filtering in the one-dimensional case and when un-normalized coordinates are employed (the term “un-normalized coordinates” will be clear in a while). In particular, they show the behavior of the tex1D() function which is the CUDA function performing texture filtering in a one-dimensional case both for the nearest-neighbor and linear interpolations. For nearest-neighbor interpolation, $tex1D(x)=f_m$ , $m\leq x < m + 1$ , $m=0,1,\ldots,M-1$ , while, for linear interpolation, tex1D() is the result of the linear interpolation between $f_m$ and $f_{m + 1}$ , for $m + 0.5\leq x\leq m + 1 + 0.5$ and $m=0,1,\ldots,M-2$ . In both cases, it can be seen that

$f^{(p)}(x)=tex1D(x + 0.5), p=0,1,$ , [7]

Nearest-neighbor interpolation using texture filtering is illustrated in figure 11 below:

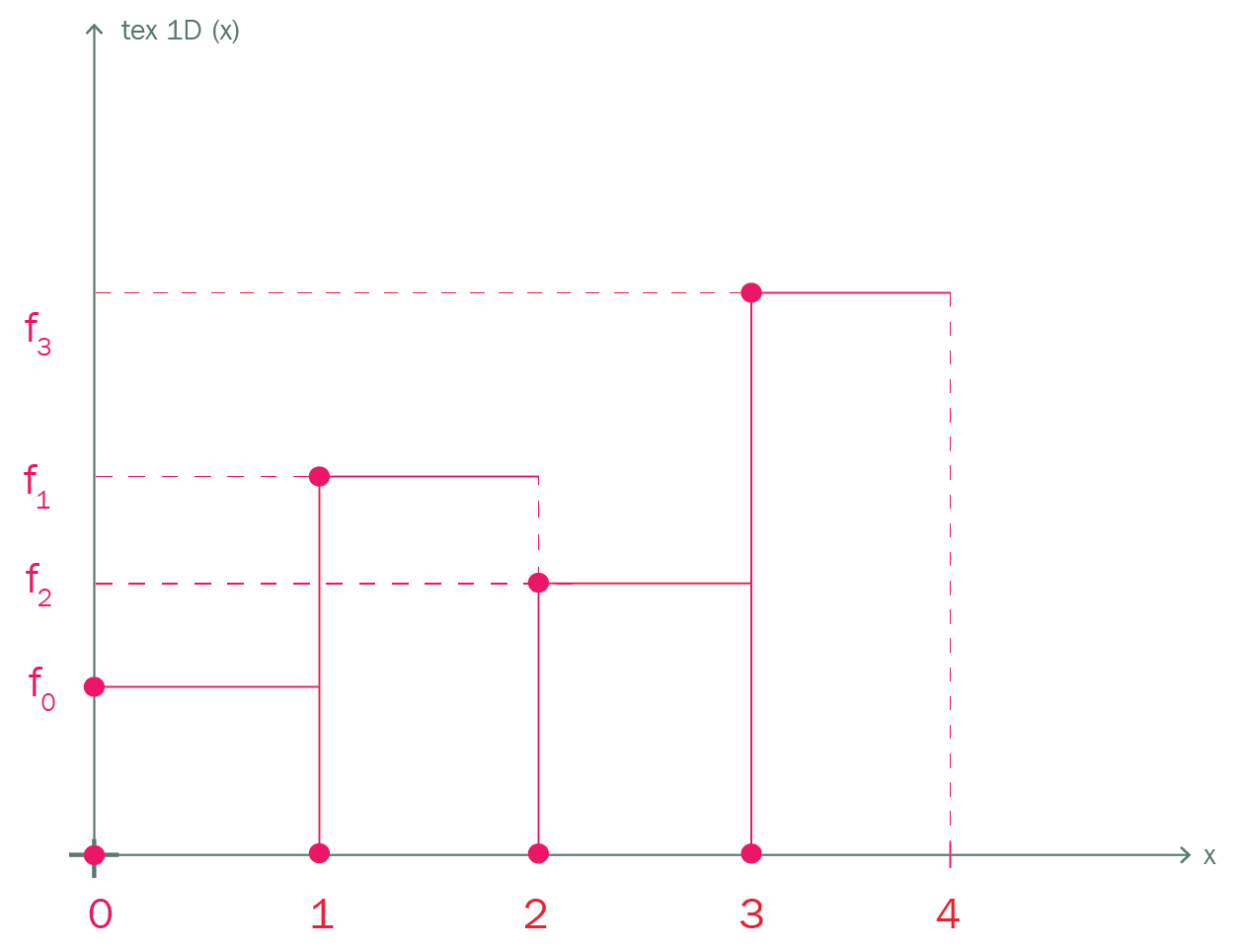

Figure 11. Interpolation is performed by texture filtering: nearest-neighbor.

Figure 11 represents the hardware implementation of Figure 5. The difference between them is that the interpolation function is not constant around each interpolation sample, but rather between two consecutive interpolation samples which are responsible for the $0.5$ shift.
On the other side, figure 12 below illustrates linear interpolation using texture filtering:

Figure 12. Interpolation is performed by texture filtering: nearest-neighbor.

Figure 12 represents the hardware implementation of Figure 7. In figure 12, the interpolation function is not linear between samples as in figure 7, but there is again a $0.5$ shift.
According to equation [7], we should remember to take care of the $0.5$ shift needed to use texture filtering in the sequel. The need for such a shift also occurs for the two-dimensional case. Indications on how using texture memory for filtering are now in order.
Texture memory must be associated, at run-time and by proper function calls, to a memory region, the texture, before being available to use in a kernel. Furthermore, a texture has several attributes which we will need to use:

dimensionality: it indicates if the texture is accessed as a one-dimensional array by one coordinate, a two-dimensional array by two coordinates, or a three-dimensional array by three coordinates;
types: these are input and output data types;
coordinate scaling: figures 11 and 12 show texture filtering in the case of un-normalized coordinates; in other words, the coordinate by which texture is accessed belongs to the interval $[0,M[$ ; a different possibility is using normalized coordinates in which the $[0,M[$ interval is compressed to $[0,1[$ ; in the present project, we will use un-normalized coordinates;
filtering mode: it specifies whether interpolation is the nearest-neighbor or linear;
address mode: it specifies the “boundary conditions”, namely, what texture filtering returns when the access coordinate is outside $[0,M[$ ; for example, the texture values can be prolonged by zeros, or periodically, or with the last sample or by a mirroring of the $[0,M[$ interval [6].

A very important thing to remember when using textures is that texture cache is not coherent. This means that texture fetching from addresses that have been modified by global stores return undefined data if both the operations are performed in the same kernel call. In other words, a thread can consistently texture fetch a memory location if the location has been updated by a previous kernel call or memory copy, i.e., outside the current kernel call.
Now that we have a picture of what texture memory and texture filtering are, let’s investigate how the latter is implemented in CUDA.

Getting familiar with texture filtering in the one-dimensional case

To get familiar with the nearest-neighbor and linear interpolations with texture filtering, we will now consider a simple one-dimensional case. We will illustrate a getting-started code as a sequence of code snippets. For the sake of clarity, the sequence of code snippets will not be the same as they appear in the full code.
Let’s begin with the first part of the code defining the texture reference in Listing 1:

#include <stdio.h>

texture<float, 1> tex;

#define cudaCHECK(ans) { checkAssert((ans), __FILE__, __LINE__); }

inline void checkAssert(cudaError_t errorCode, const char *file,
    int line, bool abort = true){
    if (errorCode != cudaSuccess){
        fprintf(stderr, "Check assert: %s %s %d\n",
           cudaGetErrorString(errorCode), file, line);
        if (abort) exit(errorCode);}}

Listing 1. First part of the getting started texture code: texture memory declaration and CUDA error checking.

As can be seen, one-dimensional, float-type texture memory is declared. Relevantly, such a declaration does not allocate storages and does not associate storage with the textured handle.
Then, the number of threads per block to be used in the subsequent kernel calls is defined and, finally, the cudaCHECK() function appears [7]. Such a function enables performing the error check either on CUDA kernel invocations or on CUDA API calls. Indeed, CUDA APIs return an error code providing information on possible errors. By decorating CUDA APIs with cudaCHECK(), it is possible to “read” such error codes. The use of cudaCHECK() or of other error check functions is of the utmost importance when coding in CUDA.
Let’s now jump to the main() function in Listing 2:

int main(){
    // --- Number of samples
    int numInSamples = 5;
    // --- Number of interpolated samples
    int numOutSamples = 7;
    // --- Input data on host and device
    float *h_samples = (float*)malloc(numInSamples * sizeof(float));
    for (int ind = 0; ind < numInSamples; ind++) {
        h_samples[ind] = (float)ind / (float)numInSamples;
        printf("index = %d; datum = %f\n", ind, h_samples[ind]);}
    printf("\n\n");
    float* d_samples;
    cudaCHECK(cudaMalloc(&d_samples, sizeof(float) * numInSamples));
    cudaCHECK(cudaMemcpy(d_samples, h_samples, sizeof(float) *
       numInSamples, cudaMemcpyHostToDevice));
    // --- Output sampling
    float *h_xCoord = (float *)malloc(numOutSamples * sizeof(float));
    h_xCoord[0] = -0.6f; h_xCoord[1] = -0.1f; h_xCoord[2] = 0.6f;
    h_xCoord[3] = 1.5f; h_xCoord[4] = 2.1f; h_xCoord[5] = 2.9f;
    h_xCoord[6] = 4.7f;
    float *d_xCoord;
    cudaCHECK(cudaMalloc(&d_xCoord, sizeof(float) * numOutSamples));
    cudaCHECK(cudaMemcpy(d_xCoord, h_xCoord, sizeof(float) *
       numOutSamples, cudaMemcpyHostToDevice));
    textureFiltering(h_samples, d_samples, d_xCoord, numInSamples,
       numOutSamples);
    return 0;}

Listing 2. `main` function of the getting-started texture code.

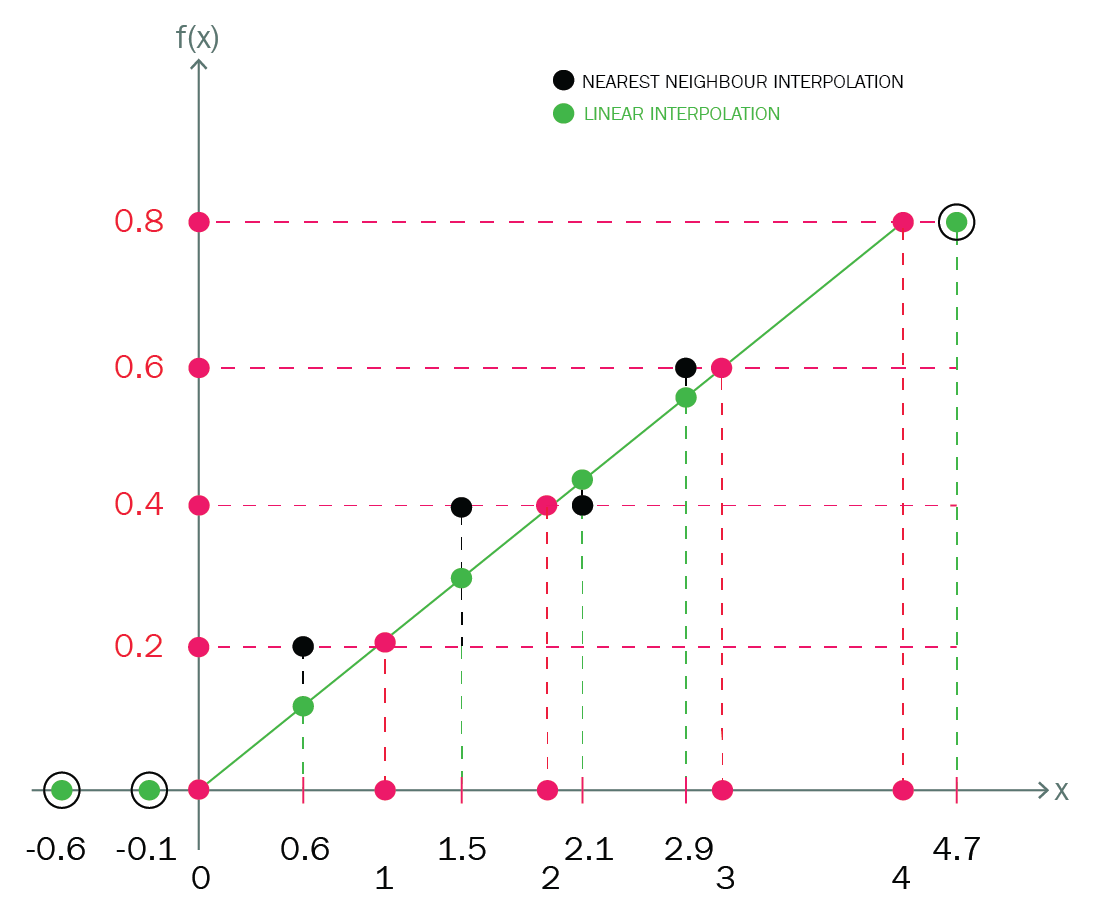

As it can be seen, the sequence h_samples is made of $5$ samples: $0, 0.2, 0.4, 0.6, 0.8$ . In other words,

$f_m=m \times 0.2, m=0,\ldots,4.$ [8]

The coordinates of $7$ interpolation points h_x are then defined:

$x_0=-0.6, x_1=-0.1, x_2=0.6, x_3=1.5, x_4=2.1, x_5=2.9, x_6=4.7.$ [9]

These arrays are then transferred to the GPU memory. Finally, the textureFiltering() function performs the texture-based interpolations and displays the results.
The textureFiltering() function is shown in Listing 3 below:

void textureFiltering(float *h_samples, float *d_samples, float
    *d_xCoord, int numInSamples, int numOutSamples) {

    cudaArray* d_cudaArrayData = NULL;
    cudaMallocArray(&d_cudaArrayData, &tex.channelDesc, numInSamples, 1);
    cudaMemcpyToArray(d_cudaArrayData, 0, 0, h_samples,
        sizeof(float) * numInSamples, cudaMemcpyHostToDevice);
    cudaBindTextureToArray(tex, d_cudaArrayData);
    tex.normalized = false;
    tex.addressMode[0] = cudaAddressModeClamp;
    //tex.addressMode[0] = cudaAddressModeBorder;
    //tex.addressMode[0] = cudaAddressModeWrap;
    //tex.addressMode[0] = cudaAddressModeMirror;
    tex.filterMode = cudaFilterModePoint;

    textureFilteringKernelNerp << <1, numOutSamples >> >( d_samples,
        d_xCoord, numInSamples);
    cudaCHECK(cudaPeekAtLastError());
    cudaCHECK(cudaDeviceSynchronize()); printf("\n\n");

    tex.filterMode = cudaFilterModeLinear;
    textureFilteringKernelLerp << <1, numOutSamples >> >(
        d_samples, d_xCoord, numInSamples);
    cudaCHECK(cudaPeekAtLastError());
    cudaCHECK(cudaDeviceSynchronize());}

Listing 3. The `textureFiltering()` function of the getting-started texture code.

To explain Listing 3, let us mention that CUDA textures are bound to CUDA arrays which are opaque memory layouts having dimensionality one, two, or three and optimized for texture fetching. After having defined the cudaArray and transferred the host data, cudaBindTexture() is used to bind the texture reference to the memory buffer. This informs the CUDA runtime of the following:

we mean using the buffer specified in cudaArray as a texture;
we mean using the texture reference at hand as the “texture’s name”.

We furthermore notify CUDA that we intend to use un-normalized coordinates, as mentioned above, by tex.normalized = false. We also inform CUDA on how to prolong the data outside the sampling interval. As already said, different possibilities are available. In the above example, we use tex.addressMode[0] = cudaAddressModeClamp. This means that the samples are prolonged as follows:

$f_m=f_0, m<0,$ [10]

and

$f_m=f_{M-1}, m\geq M.$ [11]

The textureFiltering() function is set up to easily change the prolongation modality. It is enough to just comment the currently running line and uncomment the desired address mode. It should be noticed that tex.addressMode is indexed. For the current example, only one index is of interest, being the texture one-dimensional, but, in principle, for two or three-dimensional textures different address modes can be chosen for different dimensions (see Exercise 2).
Finally, the desired filtering type should be chosen. Nearest-neighbor interpolation is achieved by launching the textureFilteringKernelNerp() kernel and setting tex.filterMode = cudaFilterModePoint.

The name of the kernel function contains the “nickname” NERP typically used to denote nearest-neighbor interpolation.

Later on, linear interpolation is obtained by launching the textureFilteringKernelLerp() kernel function and setting tex.filterMode = cudaFilterModeLinear.

Also the name of the latter kernel function contains the “nickname” LERP typically used to indicate linear interpolation.

In both the cases of nearest-neighbor and linear interpolations, once tex.filterMode has been defined, our texture is set up and ready to be used.
Let us analyze first the textureFilteringKernelNerp() kernel function reported in Listing 4:

__global__ void textureFilteringKernelNerp(const float *
    __restrict__ d_samples, const float * __restrict__ d_xCoord, const int
    numInSamples){
    int tidx = threadIdx.x + blockDim.x * blockIdx.x;
    float nn;
    int ind = (int)round(d_xCoord[tidx]);
    if (d_xCoord[tidx] < 0)
        nn = d_samples[0];
    else if (d_xCoord[tidx] > numInSamples - 1)
        nn = d_samples[numInSamples - 1];
    else
        nn = d_samples[ind];
    printf("argument = %f; texture = %f; nearest-neighbor =
        %f\n", d_xCoord[tidx], tex1D(tex, (d_xCoord[tidx]) + 0.5), nn);}

Listing 4. The `textureFilteringKernelNerp()` kernel function of the getting-started texture code.

This kernel function prints the results of nearest-neighbor texture filtering by invoking tex1D (tex,(d_xCoord[tidx])+0.5) which evaluates $f^{(0)}$ at d_xCoord[tidx]. The need for the $0.5$ shift has been already explained above. The value of nearest-neighbor texture filtering is compared with an analogous “manual” interpolation. Manual nerp is simply achieved by picking up the sample with index nearest to d_xCoord[tidx], by calling the round() function.
The if...else conditions are just needed to check whether d_xCoord[tidx] falls within the interpolation interval and, if not, clamping is used. In other words, if d_xCoord[tidx] is located at the left of the interpolation interval, d_samples[0] is taken as nearest-neighbor interpolation value. Opposite to that, if d_xCoord[tidx] is on the right side of the interpolation interval, d_xCoord[M-1] is picked up.
The results of both nearest-neighbor and linear filterings for the considered example are illustrated in figure 13 below:

Figure 13. Interpolation as performed by texture filtering for the nearest-neighbor and linear cases.

The red dots refer to the samples, the black dots are the results of nearest-neighbor interpolation and the green dots are the results of linear interpolation. The green dots surrounded by a black circumference mean that the results of the nearest-neighbor and linear interpolation coincide.
Let us now consider the kernel function performing the linear texture filtering reported in Listing 5:

__global__ void textureFilteringKernelLerp(const float *
    __restrict__ d_samples, const float * __restrict__ d_xCoord,  const int numInSamples){
    int tidx = threadIdx.x + blockDim.x * blockIdx.x;
    float ll;
    if (d_xCoord[tidx] < 0)
        ll = d_samples[0];
    else if (d_xCoord[tidx] > numInSamples - 1)
        ll = d_samples[numInSamples - 1];
    else {
        int ind = floor(d_xCoord[tidx]);
        float alpha = d_xCoord[tidx] - ind;
        ll = (1.f - alpha) * d_samples[ind] +
            alpha * d_samples[ind + 1];}
    printf("argument = %f; texture = %f; linear = %f\n", d_xCoord[tidx],
    tex1D(tex, (d_xCoord[tidx]) + 0.5), ll);}

Listing 5. The `textureFilteringKernelLerp()` kernel function of the getting-started texture code.

The kernel function is constructed symmetrically with respect to the foregoing one. It shows the results of the linear interpolation by invoking tex1D(tex, d_xCoord[tidx] + 0.5) which, this time, performs a linear interpolation instead of nearest-neighbor interpolation since we have used tex.filterMode = cudaFilterModeLinear. Texture filtering is once again compared with “manual” linear interpolation. A relevant thing to note is that the largest index of the sample not larger than the interpolation point d_xCoord[tidx] is obtained by using the floor() function. The result of linear texture filtering for the considered example is shown in figure 13.
Finally, let us observe that, when running the full example, a difference between the texture filtering result and that associated with the “exact” linear interpolation according to equation [3] can be appreciated. Such a difference is related to the lower accuracy of texture filtering, as already above mentioned.
Once we have made practice on texture filtering in a simplified setting, we are ready to face interpolation using texture filtering on a full image.

Practice: Nearest-neighbor and linear interpolations of a PGM image

We are now ready to move a step forward towards the project of interest. In particular, we will read a PGM (Portable Gray Map) image from a file, we will perform the nearest-neighbor and linear interpolations and, finally, we will save the result again in a PGM image. The choice of the PGM format is due to the fact that it is designed to be extremely easy to learn and manipulate. It is nevertheless convenient to provide a short recall.
A PGM image is a grayscale image whose pixels, or “dots” on the screen, are encoded with one or two bytes ( $8$ or $16$ bits). A PGM file provides for a header containing information on the file itself and on the image and an array of numbers representing the different shades of gray of the generic pixel, ranging from black ( $0$ ) to white (up to $65,536$ ). PGM images are typically stored as ASCII files, but we will here deal with a binary representation. Binary PGM files are encoded with a single byte.
The first line contains the header which reports the format: “P2” for text or “P5” for binary. In our case, the format type should be “P5”. The second line optionally contains a comment. The line is a comment if it starts with “#”. In the case the second line is a comment, the next line contains the image size in terms of width x height along with the maximum number of shades.
The latter number is $255$ for binary PGM images. In the case the second line is not a comment, then it is the second line that contains that information. After that, the image is represented by an array of grey shades, one per each pixel.
An example of binary PGM image is shown below:

P2
# A 16x16 black background with white diagonal
16
255
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
255 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 255 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 255 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 255 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 255 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 255 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 255 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 255 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 255 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 255 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 255 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 255 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 255 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 255 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 255

Listing 6. An example of PGM image file.

It defines a 16x16 black and white image with black background (the 0’s) and white diagonal (the 255’s).
Many PGM images that can be used to play with the codes in this project can be downloaded from http://people.sc.fsu.edu/~jburkardt/data/pgmb/pgmb.html.
In the project at hand, the function loadPGMImageAndInitTexture() loads the PGM image to be interpolated, while the function writePGMImage() writes the interpolated image. We will not go through the details of PGM image read-writes and essentially use those functions as black-boxes. Nevertheless, loadPGMImageAndInitTexture() also initializes the texture which, in our relevant example, is a two-dimensional texture.
The initialization is performed by invoking the initTexture() function whose details are reported in Listing 7:

void initTexture(int imageWidth, int imageHeight, unsigned char
    *h_samples){
    // --- Allocate CUDA array and copy image data
    cudaChannelFormatDesc channelDescrptr =
    cudaCreateChannelDesc (8, 0, 0, 0,
    cudaChannelFormatKindUnsigned);
    cudaCHECK(cudaMallocArray(&d_imageArray, &channelDescrptr,
        imageWidth, imageHeight));
    unsigned int sz = imageWidth * imageHeight *
        sizeof(unsigned char);
    cudaCHECK(cudaMemcpyToArray(d_imageArray, 0, 0, h_samples,
        sz, cudaMemcpyHostToDevice));
    free(h_samples);
    // --- Texture set up
    texReference.addressMode[0] = cudaAddressModeClamp;
    texReference.addressMode[1] = cudaAddressModeBorder;
    //texReference.addressMode[1] = cudaAddressModeClamp;
    texReference.filterMode = cudaFilterModeLinear;
    texReference.normalized = false;
    // --- Texture binding
    cudaCHECK(cudaBindTextureToArray(texReference,
        d_imageArray));}

Listing 7. The `initTexture()` function.

As can be seen, the texture filtering mode is initialized to linear, but this setting will be changed in the sequel. Moreover, the address mode is clamp in the two dimensions. This setting will be kept fixed in the following examples. Finally, the un-normalized coordinates will be used.
After having loaded the PGM image and initialized the texture, we report in the following Listing 8 the kernel function that will be used for nearest-neighbor and linear interpolations:

__global__ void nalKernel(unsigned char * __restrict__  d_interpSamples,
    const unsigned int imWidth, const unsigned int imHeight,
    const float transl_x, const float transl_y, const float
    scaleFactor, const float xCenter, const float yCenter){

    const int tidx = blockIdx.x * blockDim.x + threadIdx.x;
    const int tidy = blockIdx.y * blockDim.y + threadIdx.y;
    float xNew = (tidx - xCenter) * scaleFactor + xCenter + transl_x;
    float yNew = (tidy - yCenter) * scaleFactor + yCenter + transl_y;
    if ((tidx < imWidth) && (tidy < imHeight)){
        float outSample = tex2D(texReference, xNew + 0.5f, yNew + 0.5f);
        d_interpSamples[tidy * imWidth + tidx] = outSample * 0xff;}}

Listing 8. The `nalKernel()` function to perform nearest-neighbor and linear texture-based interpolations.

In the kernel above, tidx and tidy represent the x and y coordinates of each pixel, while xNew and yNew represent the new coordinates calculated after the translation and scaling operations. The same kernel function is used for both the nearest-neighbor and linear texture-based interpolations. Indeed, it will be enough to change the address mode from point to linear to change the operation of such function from nearest-neighbor to linear. The name of the kernel function is evocative of that. Indeed, “nal” means Nerp And Lerp. In both cases, texture filtering is achieved by the tex2D() function and the +0.5 shifts in the texture coordinates are due to the already mentioned texture convention related to how text2D() works.
The kernel function uses three parameters: transl_x, transl_y and scaleFactor. They define the translations along $x$ and $y$ and a scale factor, respectively. If scaleFactor > 1, the interpolation performs a zoom out, while if scaleFactor < 1, the interpolation performs a zoom in.
To better understand the meaning of the mentioned parameters, let us consider a practical example.
Figure 14 below illustrates the 512x512 image (“Basilica Julia”) used here and in the following to analyze the performance of the developed interpolation codes:

Figure 14. The original “Basilica Julia” image.

Figure 15 below shows the result of applying nearest-neighbor interpolation to the original image when transl_x = 0, transl_y = 0 and scaleFactor = 1:

Figure 15. Nerp with `transl_x = 0`, `transl_y = 0`, `scaleFactor = 1`.

These parameters correspond to zero translation and zoom, namely, to recompute the image exactly in the same 512x512 original points. Obviously, Figures 14 and 15 coincide.
Figure 16 below refers to zero translation, namely, transl_x = 0 and transl_y = 0, but scaleFactor = 2, namely, a double zoom out is performed:

Figure 16. Nerp with `transl_x = 0`, `transl_y = 0`, `scaleFactor = 2`.

In other words, we have changed scaleFactor from 1 to 2, while keeping the original values of transl_x and transl_y.
A zoom-in appears with features outside the image due to the particular kind of chosen texture prolongation. As can be seen, the original image dimensions are now halved, while features appear on its exterior. The external features represent the prolongation of the image according to the address mode clamp. The image at the center appears smaller since the chosen parameters correspond to a x2 decimation.
Figure 17 below illustrates the reconstruction which corresponds again to transl_x = 0 and transl_y = 0, but to scaleFactor = 0.5 meaning a two-fold zoom in:

Figure 17. Nerp with `transl_x = 0`, `transl_y = 0`, `scaleFactor = 0.5`.

We have again changed scaleFactor from 2 to 0.5, while keeping the original values of transl_x and transl_y. Indeed, the reconstruction now simply represents the central part of the Basilica Julia. A zoom-in effect appears. In this case, the original picture has been sampled by performing reconstructions also at points in between the original samples.
Let us conclude this tracking shot by considering the reconstruction with transl_x = 100, transl_y = 100 and scaleFactor = 1/8. Figure 18 below illustrates the result of such a reconstruction:

Figure 18. Nerp with `transl_x = 100`, `transl_y = 100`, `scaleFactor = 1/8`.

We have now changed both transl_x and transl_y from 0 to 100 and scaleFactor from 0.5 down to 1/8.This means that we have performed an even larger magnification (8 to 1) and that we have translated the reconstruction window so to catch a detail of the Basilica Julia fringes.
As mentioned before, the same kernel can be used to perform linear interpolations also by simply changing the filtering modality. The smoothness/accuracy can be appreciated in figure 19 below:

Figure 19. Lerp with `transl_x = 100`, `transl_y = 100`, `scaleFactor = 1/8`.

The transl_x, transl_y, and scaleFactor parameters are the same as before. In figure 19 above, the same reconstruction of figure 18 is shown, but now by performing a bilinear interpolation. The image appears smoother than before.
Following an interlude of practice, let us now come back to theory to make the last analytical effort and understand the details of cubic B-spline interpolation.

Cubic B-spline interpolation

From the mathematical point of view, nearest-neighbor and linear interpolations correspond to approximate a function whose samples are known using zero-th and first-order polynomials, respectively. Moreover, in the foregoing section, we have learned how linear interpolation is capable to improve the nearest-neighbor interpolation.
It can then be expected that increasing the degree of the interpolation polynomial leads to increased interpolation quality. In this section, with the aim of stepping forward, we will:

discuss cubic interpolation (based on third-order polynomials); alternatively, for the sake of simplicity, we will again lead a preliminary one-dimensional discussion;
introduce cubic B-spline interpolation; this is the particular cubic interpolation of interest here;
show how cubic B-spline interpolation can be implemented as a texture filtering;
extend the one-dimensional scheme to two dimensions to solve the problem known as bicubic interpolation.

We will explore these instructions on a step-by-step basis in the following sections. Let us start with cubic interpolation.

Cubic interpolation

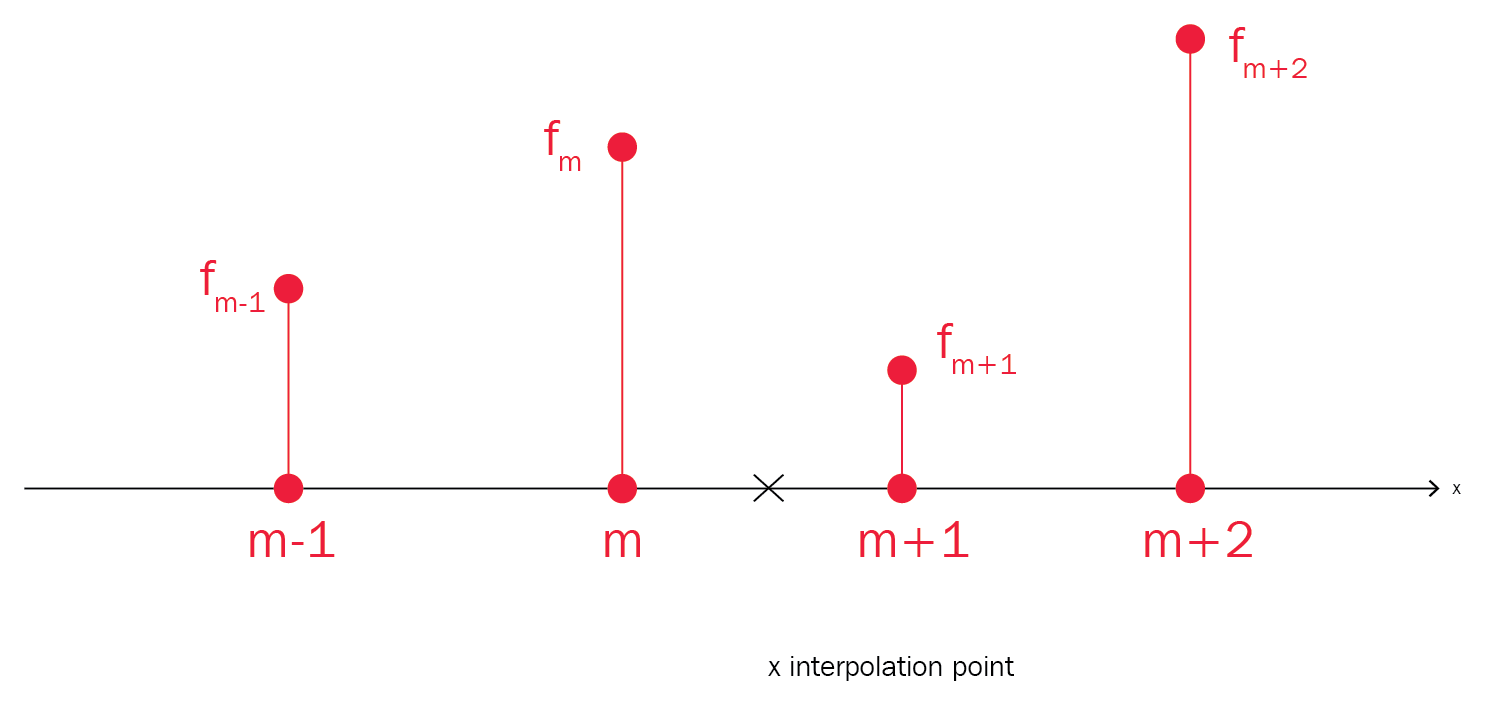

To begin with, figure 20 below illustrates cubic interpolation:

Figure 20. Cubic interpolation.

The above figure shows that, in order to know the function at the interpolation point represented by the cross, we need two samples on its left and two samples on its right.
Let us recall that, in the one-dimensional case, nearest-neighbor interpolation used only one sample per interpolation interval $(m, m + 1)$ , being represented by a zero-th order polynomial. Moreover, linear interpolation used two samples per interpolation interval $(m, m + 1)$ , being represented by a first-order polynomial. As it can be seen from figure 20, cubic interpolation uses four samples per interpolation interval, being represented by a third-order polynomial. In particular, to reconstruct the function $f(x)$ in $(m, m + 1)$ , the four samples $m-1$ , $m$ , $m + 1$ and $(m, m + 2)$ are now needed.
We now proceed towards cubic B-spline interpolation.

Cubic B-spline interpolation

In this project, we will use a particular kind of cubic interpolation, namely, cubic B-spline interpolation [8]. The word “spline” refers to special types of piecewise polynomial interpolations, while “B-” stands for “basis” and is related to its degree of regularity. At variance with full polynomial interpolation, spline interpolation can make the interpolation error small even when the spline adopts a low degree polynomial.
The linear interpolation seen above is a B-spline of order $1$ [8]. The nearest-neighbor interpolation, on the other side, almost coincides with a B-spline of order $0$ [8].
In the case of one-dimensional cubic B-spline, the interpolating function can be written as:

$f^{(3)}(x)=w_0(\alpha)f_{m-1} + w_1(\alpha)f_m + w_2(\alpha)f_{m + 1} + w_3(\alpha)f_{m + 2},x\in(m,m + 1)$ , [12]

where $\alpha=x-m$ and $w_i(\alpha)$ , $i=0,\ldots,3$ are interpolation functions equal to:

$w_0(\alpha)=\frac{1}{6}\left[-\alpha^3 + 3\alpha^2-3\alpha + 1\right]$ , [13]

$w_1(\alpha)=\frac{1}{6}\left[3\alpha^3-6\alpha^2 + 4\right]$ , [14]

$w_2(\alpha)=\frac{1}{6}\left[-3\alpha^3 + 3\alpha^2 + 3\alpha + 1\right]$ , [15]

and

$w_3(\alpha)=\frac{1}{6}\alpha^3$ . [16]

As it can be seen from equation [12], for each interpolation point $x$ , the number of operations to be performed increases with respect to lower-order interpolations as nearest-neighbor or linear. In other words, the better interpolation quality is paid with an increased computational burden. The increased burden can be undesirable, especially for large images and even more when the computations require a large number of interpolations on large images. In the next subsection, we will see how texture memory comes to aid again to speed up computations.

Cubic B-spline interpolation implemented as texture filtering

It is possible to exploit linear in-hardware texture filtering to also perform cubic B-spline interpolations. Linear texture filtering can be exploited to compute a generic linear combination $af_i + bf_{i + 1}$ between two samples $f_i$ and $f_{i + 1}$ [9], [10], [11]. Indeed, we have:

$af_i + bf_{i + 1}=(a + b)\left[\frac{a}{a + b}f_i + \frac{b}{a + b}f_{i + 1}\right]$ . [17]

Let us now set:

$\widetilde{\alpha}=\frac{b}{a + b}$ . [18]

After using equation [18], equation [17] becomes:

$af_i + bf_{i + 1}=(a + b)\left[(1-\widetilde{\alpha})f_i + \widetilde{\alpha}f_{i + 1})\right]$ . [19]

Let us now compare equation [19] and equation [3]. Let us remember that, in equation [3], $0\leq \alpha < 1$ must hold true because $\alpha$ is that value that, summed to the integer part of $x$ , must return $x$ . Obviously, if $0\leq \alpha < 1$ , we have also $0\leq 1-\alpha < 1$ . Accordingly, if $0\leq \widetilde{\alpha}=b/(a + b)\leq 1$ , the linear combination in equation [19] can be computed using the same linear in-hardware texture filtering we have used before to compute equation [7].
Then, instead of performing two global memory accesses and two multiplications to compute $af_i + bf_{i + 1}$ , it is possible to simply perform a linear in-hardware texture filtering and a multiplication by $(a + b)$ according to equation [19]. Obviously, condition $0\leq b/(a + b)\leq 1$ is not necessarily met. Indeed, in the case when $b=-3$ and $a=1$ , we have $b/(a + b)=1.5$ . Nevertheless, if $a$ and $b$ have the same sign, such a condition is obviously met.
Let us come back to the question of cubic B-spline interpolation and let us see how the above observation can be fruitfully used to reduce the computational complexity. To this end, let us rewrite equation [12] as:

$f^{(3)}(x)=g_0(\alpha)f^{(1)}(m-1 + \widetilde{h}_0(\alpha)) + g_1(\alpha)f^{(1)}(m + 1 + \widetilde{h}_1(\alpha))$ , [20]

where

$\left\{ \begin{array}{lc} g_0(\alpha)=w_0(\alpha) + w_1(\alpha) \\ g_1(\alpha)=w_2(\alpha) + w_3(\alpha) \\ \end{array}\right.$ , [21]

and

$\left\{ \begin{array}{lc} \widetilde{h}_0(\alpha)=\frac{w_1(\alpha)}{w_0(\alpha) + w_1(\alpha)} \\ \widetilde{h}_1(\alpha)=\frac{w_3(\alpha)}{w_2(\alpha) + w_3(\alpha)} \\ \end{array}\right.$ . [22]

It is possible to verify that $0\leq \widetilde{h}_0(\alpha) \leq 1$ and $0\leq \widetilde{h}_1(\alpha) \leq 1$ . This means that the quantities $f^{(1)}(m-1 + \widetilde{h}_0(\alpha))$ and $f^{(1)}(m + 1 + \widetilde{h}_1(\alpha))$ , and, consequently, the cubic B-spline interpolation, can be computed by linear in-hardware texture filtering. Indeed those quantities correspond to set $i=m-1$ and $i=m + 1$ , respectively, in equation [19].
For better compatibility with other published work [9], equation [20] is now rewritten as:

$f^{(3)}(x)=g_0(\alpha)f^{(1)}(m + h_0(\alpha)) + g_1(\alpha)f^{(1)}(m + h_1(\alpha))$ , [23]

where

$\left\{ \begin{array}{lc} h_0(\alpha)=-1 + \frac{w_1(\alpha)}{w_0(\alpha) + w_1(\alpha)} \\ h_1(\alpha)=1 + \frac{w_3(\alpha)}{w_2(\alpha) + w_3(\alpha)} \\ \end{array}\right.$ . [24]

Up to here, we have considered the one-dimensional case for illustration purposes. Let us now go to two dimensions.

Understanding Bicubic interpolation

Similarly to what is to be done when we have extended linear interpolation to bilinear, cubic interpolation can be constructed as a composition of one-dimensional cubic interpolations. One-dimensional cubic interpolations are illustrated in figure 21 below:

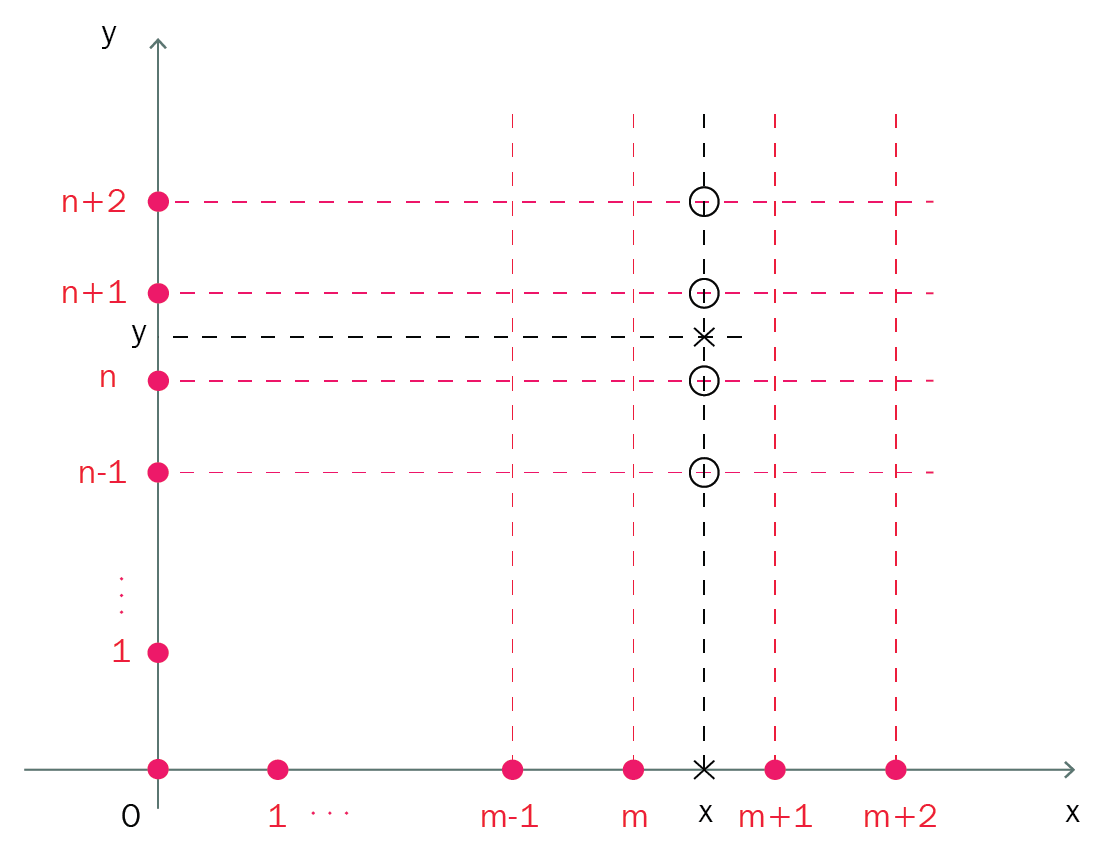

Figure 21. Bicubic B-spline interpolation.

In the previous figure, the $4\times 4=16$ samples needed to perform the bicubic interpolation as well as the interpolation point having coordinates $(x,y)$ can be seen. Figure 21 shows that bicubic interpolation can be imagined as constructed from one-dimensional cubic interpolations along the $x$ -axis, denoted by empty circles and returning the virtual samples given by:

$f_{x,j}=w_0(\alpha_x)f_{m-1,j} + w_1(\alpha_x)f_{m,j} + w_2(\alpha_x)f_{m + 1,j} + w_3(\alpha_x)f_{m + 2,j}, j=n-1,\ldots,n + 2$ , [25]

where $\alpha_x=x-m$ .
After that, a one-dimensional cubic interpolation along the $y$ -axis of the virtual samples $f_{x,j}$ , $j=n-1,\ldots,n + 2$ is performed, obtaining

$f^{(3)}(x,y)=w_0(\alpha_y)f_{x,n-1} + w_1(\alpha_y)f_{x,n} + w_2(\alpha_y)f_{x,n + 1} + w_3(\alpha_y)f_{x,n + 2}$ , [26]

where $\alpha_y=y-n$ .
Also, in this case, linear in-hardware texture filtering can be exploited. Of course, this time the relevant texture filtering will be two-dimensional. Indeed, using the one-dimensional linear filtering trick along the $x$ -axis, equation [25] can be rewritten as:

$f_{x,j}=g_0(\alpha_x)f^{(1)}(m + h_0(\alpha_x),j) + g_1(\alpha_x)f^{(1)}(m + h_1(\alpha_x),j), j=n-1,\ldots,n + 2$ . [27]

Now, using the same linear filtering trick now along the $y$ -axis, we have:

$f^{(3)}(x,y)=g_0(\alpha_y)A + g_1(\alpha_y)B$ , [28]

where

$A = g_0(\alpha_x)f^{(1)}(m + h_0(\alpha_x),n + h_0(\alpha_y)) + g_1(\alpha_x)f^{(1)}(m + h_1(\alpha_x),n + h_0(\alpha_y))$ , [29]

and

$B = g_0(\alpha_y)f^{(1)}(m + h_0(\alpha_x),n + h_1(\alpha_y)) + g_1(\alpha_y)f^{(1)}(m + h_1(\alpha_x),n + h_1(\alpha_y))$ . [30]

Following the above effort, we are now ready for some practice and to ee how a PGM image can be interpolated by the Bicubic B-spline nterpolation scheme using texture filtering.

Practice: Bicubic B-spline interpolation of a PGM image

In order to implement bicubic B-spline interpolation using in-hardware texture filtering, in Listing 8, consider the following line:

float outSample = tex2D(tex, xNew + 0.5, yNew + 0.5);

Such a line should be changed with the line below:

float outSample = bicubicDeviceFiltering<unsigned char, float>
      (tex, xNew, yNew);

In the new line, the __device__ function

bicubicDeviceFiltering<unsigned char, float>(tex, xNew, yNew)

is provided in Listing 9:

template<class inType, class outType>
__device__ outType bicubicDeviceFiltering(const texture<inType, 2,
    cudaReadModeNormalizedFloat> texReference, float xCoord, float yCoord){

    xCoord += 0.5f;
    yCoord += 0.5f;

    float p_x = floor(xCoord);
    float p_y = floor(yCoord);
    float f_x = xCoord - p_x;
    float f_y = yCoord - p_y;
    float g0_x = g_0(f_x);
    float g1_x = g_1(f_x);
    float h0_x = h_0(f_x);
    float h1x = h_1(f_x);
    float h0_y = h_0(f_y);
    float h1_y = h_1(f_y);

    outType outR = g_0(f_y) *
        (g0_x * tex2D(texReference, p_x + h0_x, p_y + h0_y) +
         g1_x * tex2D(texReference, p_x + h1x,  p_y + h0_y)) + g_1(f_y) *
        (g0_x * tex2D(texReference, p_x + h0_x, p_y + h1_y) +
         g1_x * tex2D(texReference, p_x + h1x, p_y + h1_y));
    return outR;}

Listing 9. Bicubic interpolation with texture filtering `__device__` function.

Listing 9 implements equations [29] and [30] through its last line computing outR. The auxiliary functions appearing in Listing 9, namely, g_0(), g_1(), h_0() and h_1(), are defined in Listing 10. They implement, along with the functions w_0(), w_1(), w_2() and w_3() reported again in Listing 10 below, the auxiliary functions in equations [13]-[16] and equation [21]:

__device__ float g_0(float alpha) { return w_0(alpha) + w_1(alpha); }
__device__ float g_1(float alpha) { return w_2(alpha) + w_3(alpha); }
__device__ float h_0(float alpha)
    { return -1.0f + w_1(alpha) / (w_0(alpha) + w_1(alpha)) + 0.5f; }
__device__ float h_1(float alpha)
    { return  1.0f + w_3(alpha) / (w_2(alpha) + w_3(alpha)) + 0.5f; }
__device__ float w_0(float alpha) { return (1.0f / 6.0f) *
    (alpha * (alpha * (-alpha + 3.0f) - 3.0f) + 1.0f); }
__device__ float w_1(float alpha) { return (1.0f / 6.0f) *
    (alpha * alpha * (3.0f * alpha - 6.0f) + 4.0f); }
__device__ float w_2(float alpha) { return (1.0f / 6.0f) *
    (alpha * (alpha * (-3.0f * alpha + 3.0f) + 3.0f) + 1.0f); }
__device__ float w_3(float alpha) { return (1.0f / 6.0f) *
    (alpha * alpha * alpha); }

Listing 10. Auxiliary `__device__` functions for B-spline interpolation with texture filtering.

The image interpolated by bicubic B-spline interpolation using in-hardware texture filtering is shown in figure 22 below:

Figure 22. Bicubic B-spline interpolation using in-hardware texture filtering with `transl_x = 100`, `transl_y = 100`, `scaleFactor = 1/8`.

The image above is interpolated by bicubic B-spline interpolation using in-hardware texture filtering when transl_x = 100, transl_y = 100, scaleFactor = 1/8 and, if compared with the reconstructions in figures 18 and 19, appears to be more accurate, as expected.

Exercises

This section offers the possibility of exercising ourselves on the above-learned concepts. In particular, we will develop our own bilinear and bicubic B-spline interpolations as well as a new bicubic interpolation scheme known as Catmul-Rom interpolation (described below), using texture lookups instead of texture filtering. Moreover, different address modes will be explored. Finally, the possibility of performing bicubic B-spline interpolation by texture filtering will be numerically verified.

[Exercise 1] The nalKernel() shown above used in-hardware texture filtering.
Write a kernel function using texture lookup implementing formulas [4], [5] and [6]. What kind of texReference.filterMode is enough? What is the reconstructed image in the case when transl_x = 100, transl_y = 100, scaleFactor = 1/8? Is bilinear interpolation with texture lookup more or less precise than the version in Listing 8?

[Solution to Exercise 1] While, in Listing 8, function nalKernel() used the filtering features of texture memory, now the solution to exercise 1 will include the following steps:

The texture must be only used to access the image samples so that texture is used as a simple cache;
The samples $f_{m,n + 1}$ and $f_{m + 1,n + 1}$ appearing in equation [4] must be accessed with calls like tex2D(texReference, p_x, p_y + 1.0f) and tex2D(texReference, p_x + 1.0f, p_y + 1.0f), respectively;
The samples $f_{m,n}$ and $f_{m + 1,n}$ appearing in equation [5] must be accessed with calls like tex2D(texReference, p_x, p_y) and tex2D(texReference, p_x + 1.0f, p_y), respectively;
The linear combinations appearing in equations [4], [5] and [6] must be implemented by a proper __device__ function, say lerpDevice, reported below:

template <typename inType>
__host__ __device__ inline inType lerpDevice(inType v0, inType v1,
   inType t) { return (1 - t) * v0 + t * v1; }

The exercise can be then solved by changing the following line in Listing 8:

float outSample = tex2D(texReference, xNew + 0.5f, yNew + 0.5f);

The updated line is given below:

float outSample = bilinearDeviceLookUp<unsigned char, float>(texReference, xNew, yNew);

The bilinearDeviceLookUp is shown below:

template<class inType, class outType> __device__ outType
bilinearDeviceLookUp(const texture<inType, 2, cudaReadModeNormalizedFloat>
    texReference, float xCoord, float yCoord){

    xCoord += 0.5f;
    yCoord += 0.5f;

    float p_x = floor(xCoord);
    float p_y = floor(yCoord);
    float f_x = xCoord - p_x;
    float f_y = yCoord - p_y;

    return lerpDevice(lerpDevice(
        tex2D(texReference, p_x, p_y),
        tex2D(texReference, p_x + 1.0f, p_y), f_x),
        lerpDevice(
        tex2D(texReference, p_x, p_y + 1.0f),
        tex2D(texReference, p_x + 1.0f, p_y + 1.0f),
            f_x), f_y);
}

The +0.5f for both xCoord and yCoord is due to the texture coordinate convention. Since we are using texture lookup, then texReference.filterMode = cudaFilterModePoint would be enough.

Let us now turn to a new exercise regarding the understanding of texture’s address modes.

[Exercise 2] In the example in the section on the practice on nearest-neighbor and linear interpolations of a PGM image, the two-dimensional NERP has been implemented by considering cudaAddressModeClamp as address mode. What happens if the address mode is changed for one or both the dimensions?
Recall that [5] cudaAddressModeWrap and cudaAddressModeMirror are only supported for normalized texture coordinates, while, in this project, we are dealing with un-normalized ones.

[Solution to Exercise 2] If we use the following in the initTexture() function:

texReference.addressMode[0] = cudaAddressModeClamp;
texReference.addressMode[1] = cudaAddressModeBorder;

and we use transl_x = 0, transl_y = 0 and scaleFactor = 2, then the interpolated image is shown in figure 23. We compare figure 23 with figure 16. Since we are using cudaAddressModeBorder instead of cudaAddressModeClamp for the second image dimension, now the image is prolonged upwards with zeros corresponding to the black regions on top and bottom of figure 23.

Figure 23. Nerp using different address modes for the two dimensions for the case `transl_x = 0`, `transl_y = 0` and `scaleFactor = 2`.

In the next exercise, we numerically verify whether the two conditions $0\leq\widetilde{h}_0(\alpha)\leq 1$ and $0\leq\widetilde{h}_1(\alpha)\leq 1$ after equation [22] are really met or not.

[Exercise 3] Write a Matlab or Python program to visually verify that:

$\[\left\{ \begin{array}{lc} 0\leq \widetilde{h}_0(\alpha)=\frac{w_1(\alpha)}{w_0(\alpha) + w_1(\alpha)}\leq 1 \\ 0\leq \widetilde{h}_1(\alpha)=\frac{w_3(\alpha)}{w_2(\alpha) + w_3(\alpha)}\leq 1 \\ \end{array}\right..$ [31]

[Solution to Exercise 3] The exercise is solved by creating an array for the variable $\alpha$ whose values range from $0$ to $1$ , extremes included, then defining four-vectors for the quantities $w_0(\alpha)$ , $w_1(\alpha)$ , $w_2(\alpha)$ and $w_3(\alpha)$ in equations ([13])-([16]) and finally plotting $w_0(\alpha)/(w_0(\alpha) + w_1(\alpha))$ and $w_2(\alpha)/(w_2(\alpha) + w_3(\alpha))$ . The task is simple if Matlab’s vectorized operations are exploited. The following code provides a solution in Matlab to Exercise 3:

clear all
close all
clc
N = 100;
alphaVect = linspace(0, 1, N);
w0 = (1 / 6) * (-alphaVect.^3 + 3 * alphaVect.^2 - 3 * alphaVect + 1);
w1 = (1 / 6) * (3 * alphaVect.^3 - 6 * alphaVect.^2 + 4);
w2 = (1 / 6) * (-3 * alphaVect.^3 + 3 * alphaVect.^2 + 3 * alphaVect + 1);
w3 = (1 / 6) * alphaVect.^3;
figure(1)
plot(alphaVect, w0 ./ (w0 + w1));
figure(2)
plot(alphaVect, w2 ./ (w2 + w3));

After having discussed, in Exercise 2, the possibility to implement bilinear interpolation using texture lookup instead of texture filtering, the next exercise does something similar and deals with the possibility to likewise implement bicubic interpolation using texture lookup instead of texture filtering.

[Exercise 4] The bicubicDeviceFiltering() __device__ function shown above used in-hardware texture filtering to implement bicubic B-spline interpolation. Write a __device__ function using texture lookup implementing formulas from equations [25] and [26].
What is the reconstructed image in the case when transl_x = 100, transl_y = 100, scaleFactor = 1/8?

[Solution to Exercise 4] The point is to implement equations [25] and [26] which require accessing the involved samples using texture lookup.

Note that this is different from what is done above in Listings 9 and 10 which implement equations [29] and [30] using texture filtering. Remember that you have already used texture lookup instead of texture filtering when solving Exercise 2.

The function performing one-dimensional cubic interpolation is implemented as a __device__ function and is reported in the following:

template<class inOutType> __device__ inOutType cubicInterp(float xCoord,
   inOutType fm_minus_1, inOutType fm, inOutType fm_plus_1, inOutType
   fm_plus_2){
   inOutType outR = fm_minus_1 * w_0(xCoord) + fm * w_1(xCoord) +
      fm_plus_1 * w_2(xCoord) + fm_plus_2 * w_3(xCoord);
   return outR;}

Functions $w_0(x)$ $w_0(x)$ , $w_1(x)$ , $w_2(x)$ and $w_3(x)$ are the same as those in Listing 10.

In the following code snippet, the __device__ function implementing two-dimensional interpolation using texture lookup:

template<class inType, class outType>
__device__ outType bicubicDeviceLookUp(const texture<inType, 2,
   cudaReadModeNormalizedFloat> texReference, float xCoord, float yCoord){

   xCoord += 0.5f;
   yCoord += 0.5f;
   float Indm = floor(xCoord);
   float Indn = floor(yCoord);
   float alpha_x = xCoord - Indm;
   float alpha_y = yCoord - Indn;

   outType f_x_n_minus_1 = cubicInterp<outType>(alpha_x,
      tex2D(texReference, Indm - 1, Indn - 1),
      tex2D(texReference, Indm, Indn - 1),
      tex2D(texReference, Indm + 1, Indn - 1),
      tex2D(texReference, Indm + 2, Indn - 1));

   outType f_x_n = cubicInterp<outType>(alpha_x,
      tex2D(texReference, Indm - 1, Indn),
      tex2D(texReference, Indm, Indn),
      tex2D(texReference, Indm + 1, Indn),
      tex2D(texReference, Indm + 2, Indn));

   outType f_x_n_plus_1 = cubicInterp<outType>(alpha_x,
      tex2D(texReference, Indm - 1, Indn + 1),
      tex2D(texReference, Indm, Indn + 1),
      tex2D(texReference, Indm + 1, Indn + 1),
      tex2D(texReference, Indm + 2, Indn + 1));

   outType f_x_n_plus_2 = cubicInterp<outType>(alpha_x,
      tex2D(texReference, Indm - 1, Indn + 2),
      tex2D(texReference, Indm, Indn + 2),
      tex2D(texReference, Indm + 1, Indn + 2),
      tex2D(texReference, Indm + 2, Indn + 2));

   return cubicInterp<outType>(alpha_y, f_x_n_minus_1, f_x_n,
f_x_n_plus_1, f_x_n_plus_2);}

In the __device__ function above, f_x_n_minus_1, f_x_n, f_x_n_plus_1 and f_x_n_plus_2 correspond to the virtual samples discussed in equation [25]. Furthermore, the last line is the implementation of equation [26].
The reconstructed image is reported in the next figure, namely, figure 24.

Figure 24. Bicubic interpolation with texture lookup with `transl_x = 100`, `transl_y = 100`, `scaleFactor = 1/8`

Comparing figure 24 with figure 22: the two interpolated images appear of the same quality, although bicubic interpolation with texture filtering should be more approximated. This means that texture filtering does not visually impair bicubic interpolation quality.

Another kind of cubic interpolation, much used in the applications, is Catmull-Rom interpolation, so shortly dealing with it is worthwhile. In the next exercise, we briefly discuss its implementation.

[Exercise 5] Catmull-Rom interpolation [12] is another form of spline interpolation for which:

$w_0(\alpha)=\frac{1}{2}\left[-\alpha + 2\alpha^2-\alpha^3\right]$ , [32]

$w_1(\alpha)=\frac{1}{2}\left[2-5\alpha^2 + 3\alpha^3\right]$ , [33]

$w_2(\alpha)=\frac{1}{2}\left[\alpha + 4\alpha^2-3\alpha^3\right]$ , [34]

and

$w_3(\alpha)=\frac{1}{2}\left[-\alpha^2 + \alpha^3\right]$ . [35]

Write a Matlab program to check if the above conditions are met.
If the above inequalities are not met, then write a texture lookup based approach for Catmull-Rom interpolation.

[Solution to Exercise 5] The inequalities are not met.
The code for Catmull-Rom interpolation using texture lookup is essentially the same as that for Exercise 4 with the only difference that now functions $w_0(x)$ $w_0(x)$ , $w_1(x)$ , $w_2(x)$ and $w_3(x)$ must be changed into:

__device__ float catRom_w_0(float a)
   { return a * (-0.5f + a * (1.0f - 0.5f * a)); }
__device__ float catRom_w_1(float a)
   { return 1.0f + a * a * (-2.5f + 1.5f * a); }
__device__ float catRom_w_2(float a)
   { return a * (0.5f + a * (2.0f - 1.5f * a)); }
__device__ float catRom_w_3(float a)
   { return a * a * (-0.5f + 0.5f * a); }

In conclusion, Catmull-Rom bicubic interpolation cannot benefit from texture filtering but must be implemented with texture lookup.

Summary

In this project, the image interpolation problem has been dealt with by considering, also in the analytical detail, the most common types of interpolations, namely, nearest-neighbor, bilinear, bicubic B-spline and Catmull-Rom.
We learned how nearest-neighbor, bilinear and bicubic interpolations can be implemented by exploiting the filtering features of texture memory, which has permitted to experience us writing customized CUDA kernel functions and to get familiar with the use of texture memory in general and of its hardware filtering features in particular from different points of view.
We have also learned how bilinear, bicubic B-spline and Catmull-Rom can be implemented by using texture lookup, i.e., texture memory as a simple cache without employing its filtering features. Two-dimensional interpolation examples in this chapter have regarded zooming in/out and translating images, for example, when we use our fingers to magnify images on our smartphones.
In the next Chapter, a likewise common problem in numerical approaches, namely, numerical integration, will be considered. We will see how the tools to be employed will be significantly different from those here detailed for interpolation.

Assessment

Questions

What is interpolation?
What are possible applications of interpolation?
What are one-dimensional and two-dimensional nearest-neighbor interpolation?
What are one-dimensional and two-dimensional linear interpolation?
What is texture caching? What is texture filtering?
How can nearest-neighbor interpolation be implemented by texture filtering?
How can linear interpolation be implemented by texture filtering?
How many samples are needed for one-dimensional cubic interpolation to compute the function at the interpolation point?
What kind of texture filtering is needed to implement one-dimensional cubic interpolation and how many filterings are needed per interpolation point?
How can texture be used as texture cache instead of texture filtering?
How the image is prolonged when accessed by the texture outside the image boundaries?
Can Catmul-Rom interpolation be implemented by texture filtering?

Answers

Interpolation is the reconstruction of a function within its sampling region by properly combining its samples.
They are increasing image resolution, image inpainting and image warping.
Nearest-neighbor interpolation, in both one and two dimensions, consists of evaluating the function at the interpolation point using the closests function sample.
Linear interpolation, in both one and two dimensions, consists of evaluating the function at the interpolation point using the two closests function samples in one-dimension and the four closest function samples in two-dimensions.
The texture cache enables to cache global memory data exhibiting “spatial locality”. Texture filtering permits to perform, directly in hardware, nearest-neighbor or linear interpolation. Being in-hardware, they are faster but are less precise.
Using tex1D for one-dimension and tex2D for two dimensions and setting filterMode as cudaFilterModePoint.
Using tex1D for one-dimension and tex2D for two dimensions and setting filterMode as cudaFilterModeLinear.
$4$ .
Linear. $2$ .
By setting filterMode to cudaFilterModePoint, then, by reading from any coordinate within a pixel, tex1D or tex2D return the texture sample value for that pixel.
Texture prolongs the image according to the addressMode. Examples are cudaAddressModeClamp and cudaAddressModeWrap.
No.

REFERENCES

[1] J. Sanders, E. Kandrot, CUDA by Example: an Introduction to General-Purpose GPU Programming, Boston, MA, Addison-Wesley, 2011.

[2] D.B. Kirk, W.-m.W. Hwu, Programming Massively Parallel Processors: A Hands-on Approach, Burlington, MA, Morgan-Kaufmann, 2017.

[3] R.L. Burden, J.D. Faires, Numerical Analysis Ed. 9, Boston, MA, Brooks/Cole Cengage Learning, 2011.

[4] Y. Sugimoto, F. Ino, K. Hagihara, “Improving cache locality for GPU-based volume rendering,” Parallel Computing, vol. 40, n. 5-6, pp. 59-69, May 2014

link.

[5] NVIDIA Corporation, “CUDA Programming Guide, Texture Fetching and Filtering”

link.

[6] The different addressing modes of CUDA textures, StackOverflow, Sept. 2013.

link.

[7] What is the canonical way to check for errors using the CUDA runtime API?, StackOverflow, Dec. 2012.

link.

[8] P. Thévenaz, T. Blu, M. Unser, “Interpolation revisited,” IEEE Trans. Medical Imaging, vol. 19, n. 7, pp. 739-758, Jul. 2000.

[9] C. Sigg, M. Hadwiger, “Fast third-order texture filtering,” in GPU Gems 2, Programming Techniques for High-Performance Graphics and General-Purpose Computation, Randima Fernando Ed., 2004.

[10] D. Ruijters, B.M. ter Haar Romeny, P. Suetens, “Efficient GPU-based texture interpolation using uniform B-spline,” J. Graphics Tools, vol. 13, n. 4, pp. 61-69, 2008.

[11] Bicubic B-spline interpolation CUDA sample, NVIDIA Corporation.

link.

[12] J. Li, S. Chen, “The Cubic $\alpha$ -Catmull-Rom Spline,” Math. and Comput. Appl., vol. 21, n. 33, pp. 1-14, 2016.
